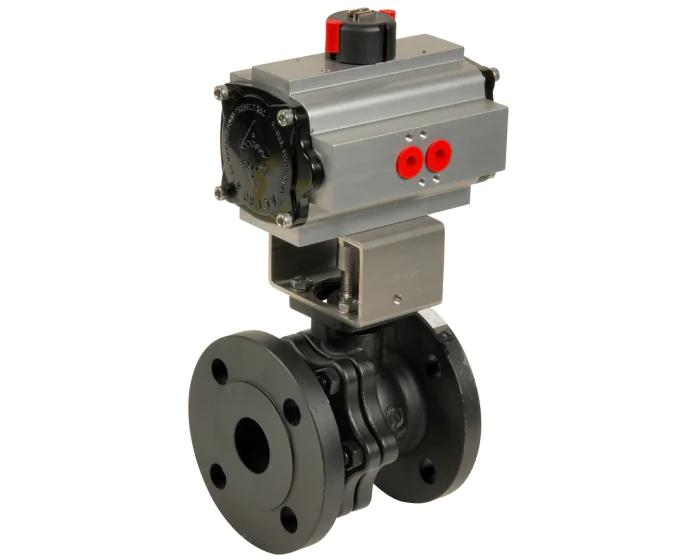

ICP Valves carbon steel ball valve 756 ANSI 150 + ADA/ASR pneumatic actuator
€273.36
(excl. btw)
The 756 series carbon steel ball valve has an A216WCB body and a CF8M ball. It is actuated with either a spring return or double acting ACTREG pneumatic actuator, up to DN150.
Specification
Value
Option certificate 3.1
Yes
Maximum delta P (bar)
10
Operating angle (°)
90
Shaft/stem matérial
Stainless steel 316
Adjustable limit screws
Yes
ATEX compatible
Yes
DN
DN15 - 1/2''
Body material
Carbon steel A216 WCB (1.0619)
ATEX protection mode
Ex c
Number of ways
2
Bore
Full
Packing gland
Graphite
PS (bar)
20
Connections
Flanged #150 PN20
Seats
TFM 1600
Ball material
Stainless steel 316
Surface temperature
TX
Pneumatic actuator type
Double acting
Ball valve design
2-piece body
Warranty period
1 year
CE
Risk category II
Range
Petrochemicals
Fire safe
Yes
If you have any questions about this product, please feel free to contact us .
Product Name
Product Number
EVAC Number
Price
Add to Cart
2812
Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Full 2-piece body DN15 - 1/2'' Double acting
274322015100
S1002801
€273.36
(excl. btw)
add to cart
2813
Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Full 2-piece body DN15 - 1/2'' Spring return
274322016101
S1002802
€304.99
(excl. btw)
add to cart
2814
Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Full 2-piece body DN20 - 3/4'' Double acting
274323015100
S1002803
€281.51
(excl. btw)
add to cart
2815
Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Full 2-piece body DN20 - 3/4'' Spring return
274323016101
S1002804
€316.20
(excl. btw)
add to cart
2816
Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Full 2-piece body DN25 - 1'' Double acting
274324015100
S1002805
€316.20
(excl. btw)
add to cart
2817
Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Full 2-piece body DN25 - 1'' Spring return
274324016102
S1002806
€397.80
(excl. btw)
add to cart
2818
Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Full 2-piece body DN40 - 1''1/2 Double acting
274326015101
S1002807
€380.66
(excl. btw)
add to cart
2819
Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Full 2-piece body DN40 - 1''1/2 Spring return
274326016102
S1002808
€427.46
(excl. btw)
add to cart
2820
Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Full 2-piece body DN50 - 2'' Double acting
274327015102
S1002809
€506.00
(excl. btw)
add to cart
2821
Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Full 2-piece body DN50 - 2'' Spring return
274327016104
S1002810
€604.66
(excl. btw)
add to cart
2822
Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Full 2-piece body DN65 - 2''1/2 Double acting
274328015103
S1002811
€648.39
(excl. btw)
add to cart
2823
Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Full 2-piece body DN65 - 2''1/2 Spring return
274328016105
S1002812
€850.11
(excl. btw)
add to cart
2824
Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Full 2-piece body DN80 - 3'' Double acting
274329015103
S1002813
€759.90
(excl. btw)
add to cart
2825
Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Full 2-piece body DN80 - 3'' Spring return
274329016105
S1002814
€941.46
(excl. btw)
add to cart
2826
Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Full 2-piece body DN100 - 4'' Double acting
274330015104
S1002815
€1,013.00
(excl. btw)
add to cart
2827
Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Full 2-piece body DN100 - 4'' Spring return
274330016106
S1002816
€1,306.26
(excl. btw)
add to cart
2828
Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Full 2-piece body DN150 - 6'' Double acting
274332015106
S1002817
€2,135.13
(excl. btw)
add to cart
2829
Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Full 2-piece body DN150 - 6'' Spring return
274332016107
S1002818
€2,394.37
(excl. btw)
add to cart
